X DRIVER

动力头

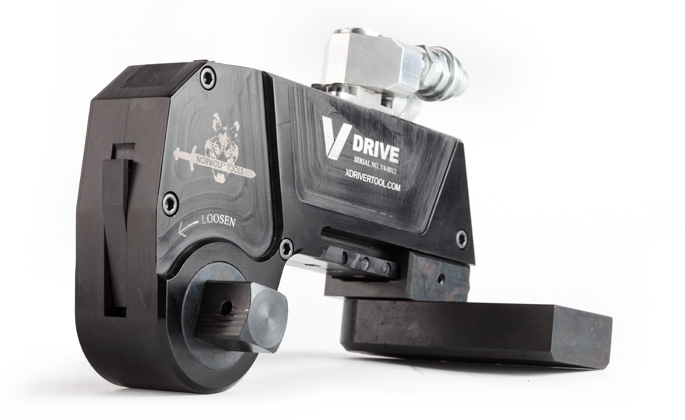

V DRIVE

工作头

成套型号

驱动方身

扭矩范围/Nm

外形尺寸/mm

A

B

C

D

E

F

G

H

X2

V2

X2-V2

3/4"

176-1762

25.4

53.3

29.5

203.2

174.8

108.7

41.4

63.5

X4

V4

X4-V4

1"

417-4175

33.8

71.1

39.4

271.0

232.9

144.8

55.1

84.6

X8

V8

X8-V8

1-1/2"

815-8155

42.2

88.9

49.3

338.6

291.1

181.1

38.8

105.7

X16

V16

X16-V16

1-1/2"

1410-14100

50.8

106.7

59.2

406.4

349.3

217.2

82.8

127.0

X32

V32

X32-V32

2-1/2"

3342-33420

67.6

142.2

78.7

542.0

465.8

289.6

110.2

169.2

X64

V64

X64-V64

2-1/2"

6528-65280

84.6

177.8

98.6

677.7

582.4

362.0

137.9

211.6
