制造商:德国苏哈特 SHT-Steib
扭矩范围:200-10000Nm
驱动方身:1”、1-1/2”
电源要求:220V/50Hz
制造商:德国苏哈特 SHT-Steib
扭矩范围:200-10000Nm
驱动方身:1”、1-1/2”
电源要求:220V/50Hz

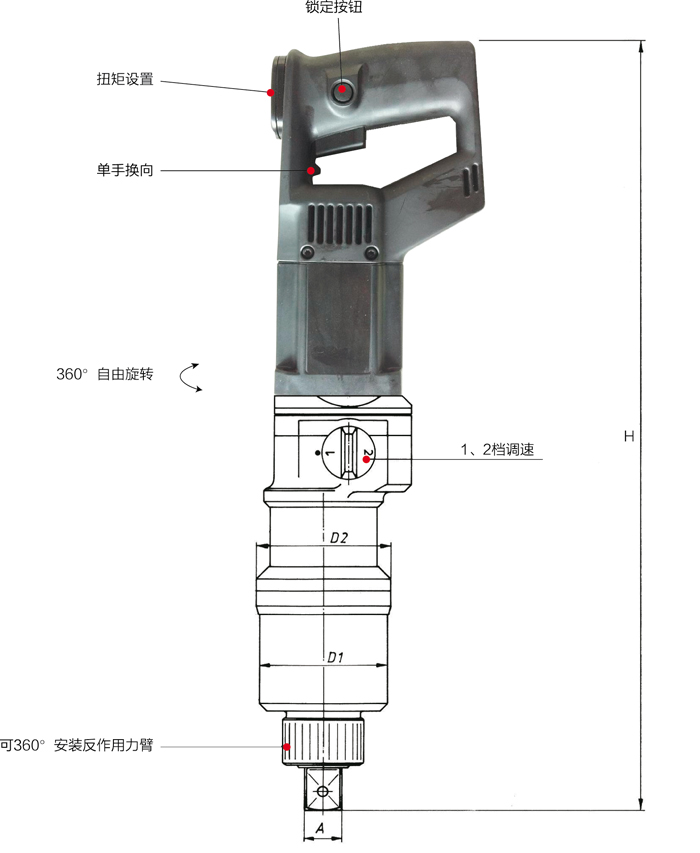

型号 |
扭矩范围/Nm* |
驱动方身/A |
H/mm |
D1/mm |
D2/mm |
转速/rpm |
重量/kg |
SME120 |
200-1200 |
1" |
502 |
86 |
91 |
15 |
7.2 |
SME220 |
400-2200 |
1" |
529 |
86 |
91 |
12 |
8 |
SME350 |
500-3500 |
1-1/2" |
547 |
98 |
101.5 |
9 |
9.5 |
SME600S |
600-6000 |
1-1/2" |
559 |
102 |
106 |
6 |
11 |
SME800 |
800-8000 |
1-1/2" |
577 |
130 |
130 |
6 |
12.5 |
SME1000 |
1000-10000 |
1-1/2" |
612 |
130 |
130 |
2 |
17 |

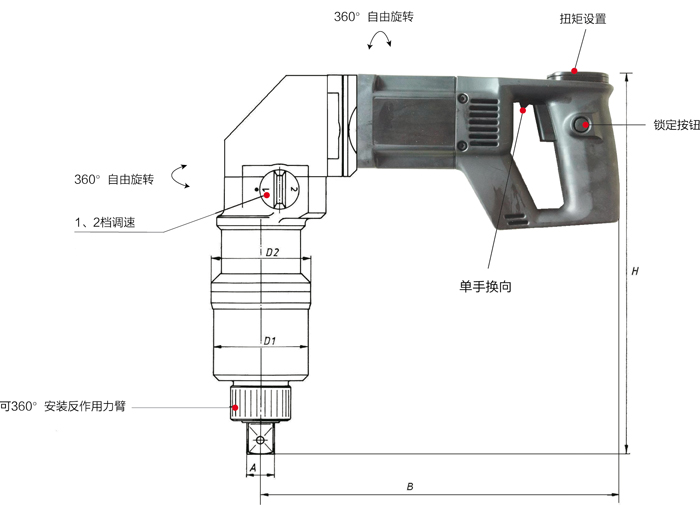

型号 |
扭矩范围/Nm |
驱动方身/A |
H/mm |
B/mm |
D1/mm |
D2/mm |
转速/rpm |
重量/kg |
SME120W |
200-1200 |
1" |
268 |
358 |
86 |
91 |
15 |
7.2 |
SME220W |
400-2200 |
1" |
295 |
358 |
86 |
91 |
12 |
8 |
SME350W |
500-3500 |
1-1/2" |
313 |
358 |
98 |
101.5 |
9 |
9.5 |
SME600SW |
600-6000 |
1-1/2" |
325 |
358 |
102 |
106 |
6 |
11 |
SME800W |
800-8000 |
1-1/2" |
343 |
358 |
130 |
130 |
6 |
12.5 |
SME1000W |
1000-10000 |
1-1/2" |
378 |
358 |
130 |
130 |
2 |
17 |
