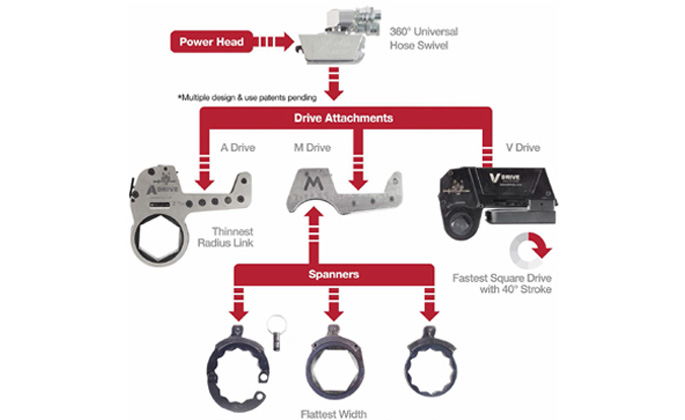

X DRIVER

动力头

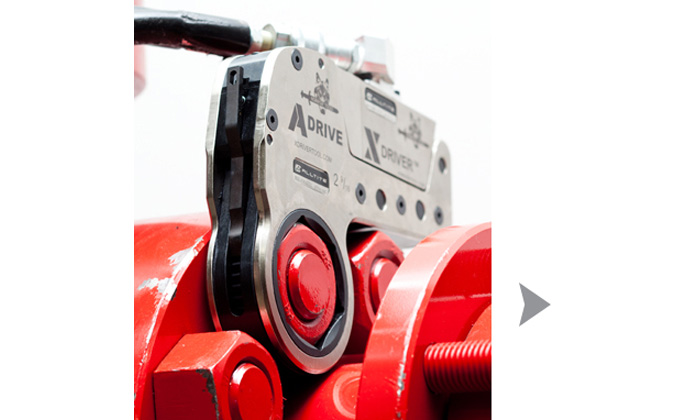

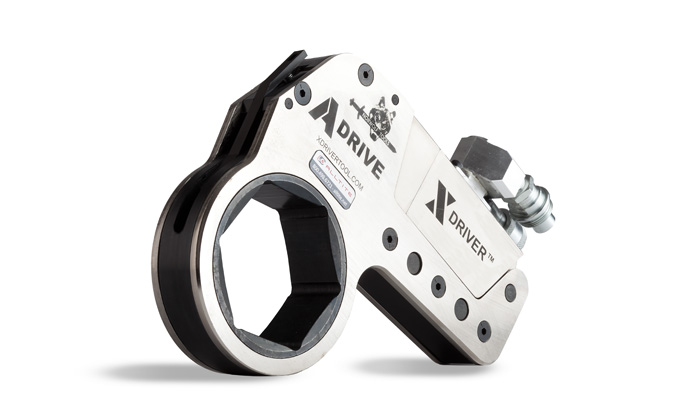

A DRIVE

六角驱动盒*

适用螺母对边/mm

扭矩范围/Nm

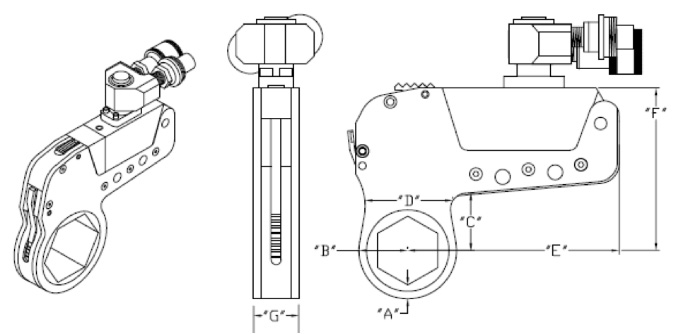

外形尺寸/mm

A

B

C

D

E

F

G

X2

A2LH27 ~ A2LH60

27-60

224-2243

9.5

25.1-44.7

38.1

39.4-78.7

133.7

104.1

28.6

X4

A4LH46 ~ A4LH80

46-80

536-5367

12.7

39.4-58.4

50.8

68.1-106.2

178.3

138.9

38.1

X8

A8LH55 ~ A8LH100

55-100

1040-10404

15.9

49.3-73.2

63.5

85.3-133.1

223.0

173.7

47.8

X16

A16LH70 ~ A16LH125

70-125

1792-17924

19.1

60.5-92.5

76.2

104.9-168.9

267.5

208.3

57.2

X32

A32LH90 ~ A32LH155

90-155

4400-44003

25.4

76.7-115.3

101.6

132.1-209.3

355.6

277.9

76.2

X64

A64LH125 ~ A64LH195

125-195

8300-83003

31.8

105.2-143.5

127.0

183.6-260.4

445.8

347.5

95.3
